HI-TOP
Jerrycan
Stackable handled containers from 250 ml to 30 litres, built for agrochemicals, solvents and bulk liquids. Ratcheted necks and tamper-evident closures are available across the range, and larger sizes are designed to travel on standard pallets without wasted space.
Available Designs

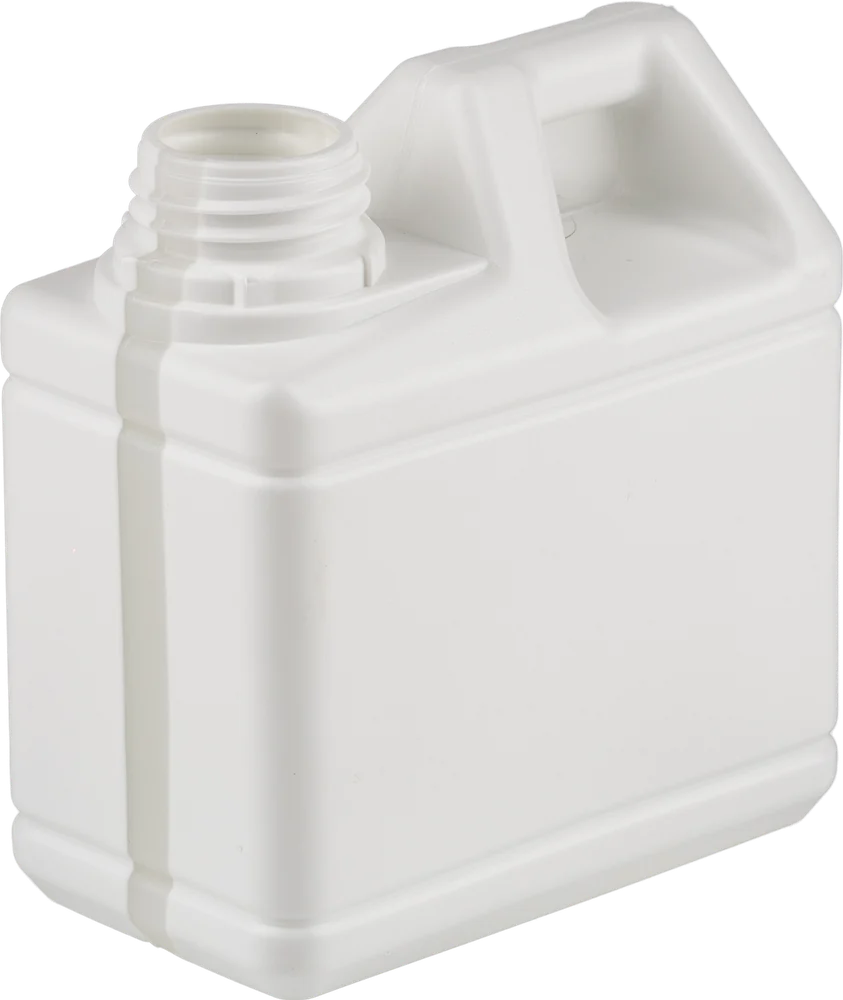

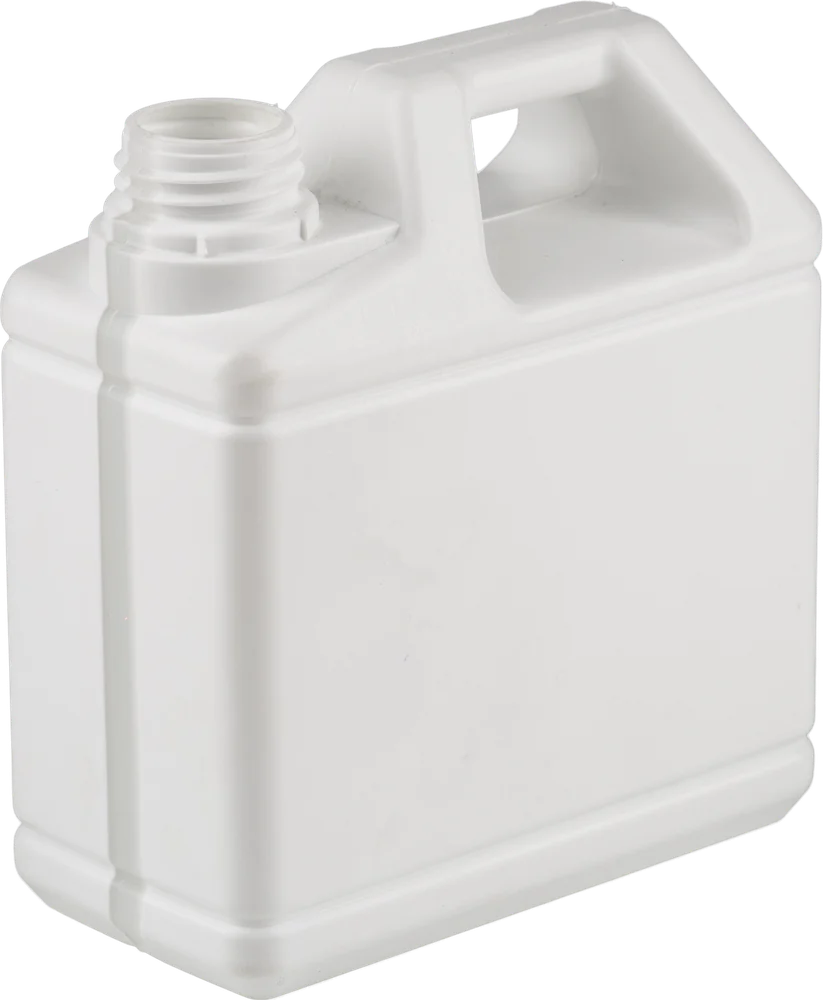

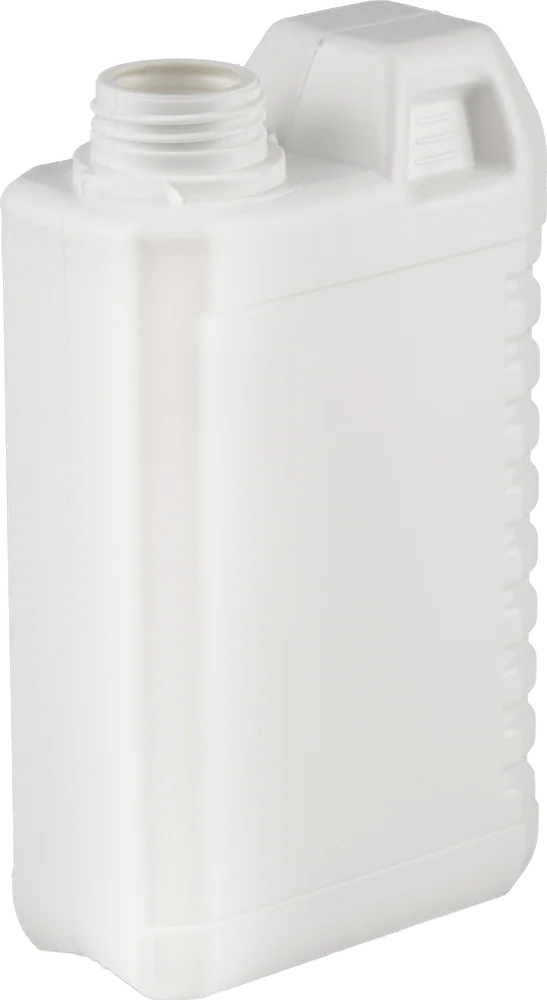

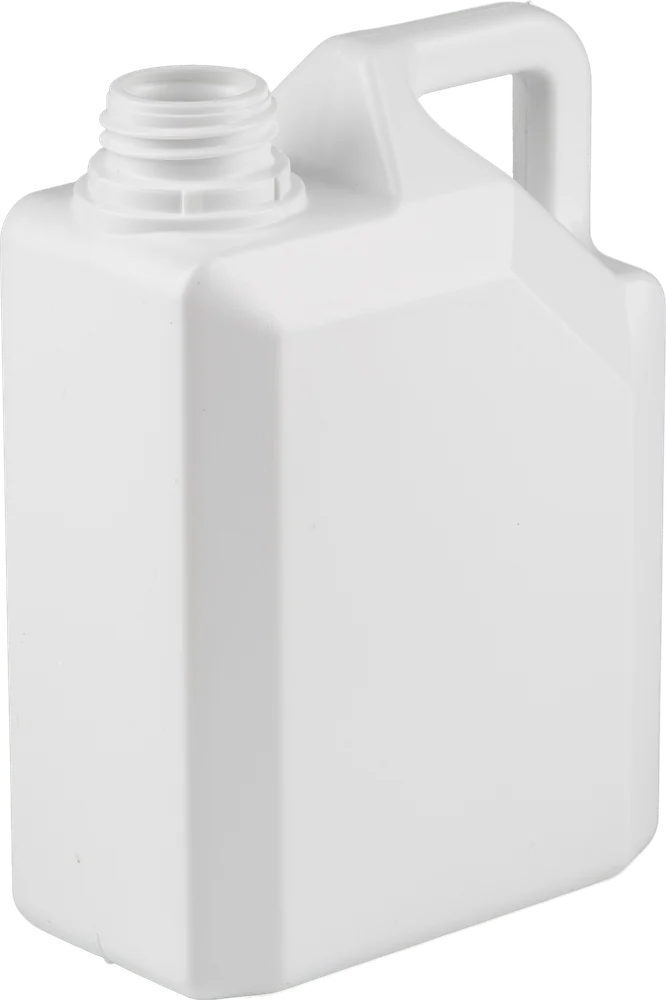

MaterialsJEC300: HDPEJE500: HDPEJE1000: HDPEJEL1000: HDPEJEM1000: HDPE
Rated capacityJEC300: 300 mlJE500: 500 mlJE1000: 1 LJEL1000: 1 LJEM1000: 1 L
Overflow capacityJEC300: 390 mlJE500: 656 mlJE1000: 1.31 LJEL1000: 1.31 LJEM1000: 1.04 L
HeightJEC300: 105 mmJE500: 122 mmJE1000: 160 mmJEL1000: 160 mmJEM1000: 200 mm
LengthJEC300: 110 mmJE500: 115 mmJE1000: 146 mmJEL1000: 146 mmJEM1000: 120 mm
WidthJEC300: 47 mmJE500: 65 mmJE1000: 73 mmJEL1000: 73 mmJEM1000: 50 mm
Closure sizeJEC300: 34 mmJE500: 34 mmJE1000: 34 mmJEL1000: 34 mmJEM1000: 32 mm
WeightJEC300: 35 gJE500: 60 gJE1000: 90 gJEL1000: 95 gJEM1000: 100 g
Per bag (pcs)JEC300: –JE500: 40JE1000: 28JEL1000: 28JEM1000: 54
Per pallet (pcs)JEC300: –JE500: 3,200JE1000: 1,792JEL1000: 1,792JEM1000: 2,592
Medium Jerrycans

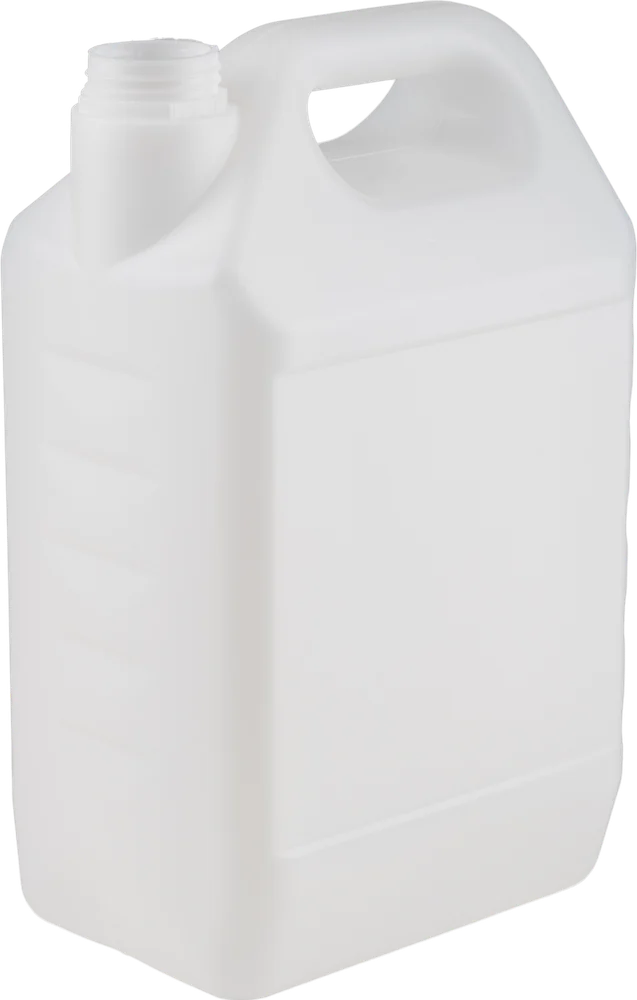

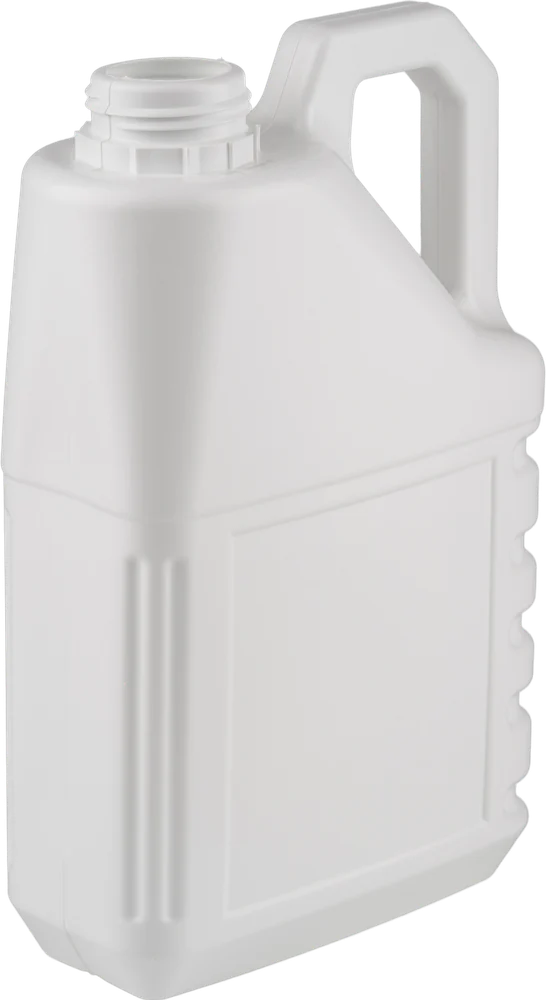

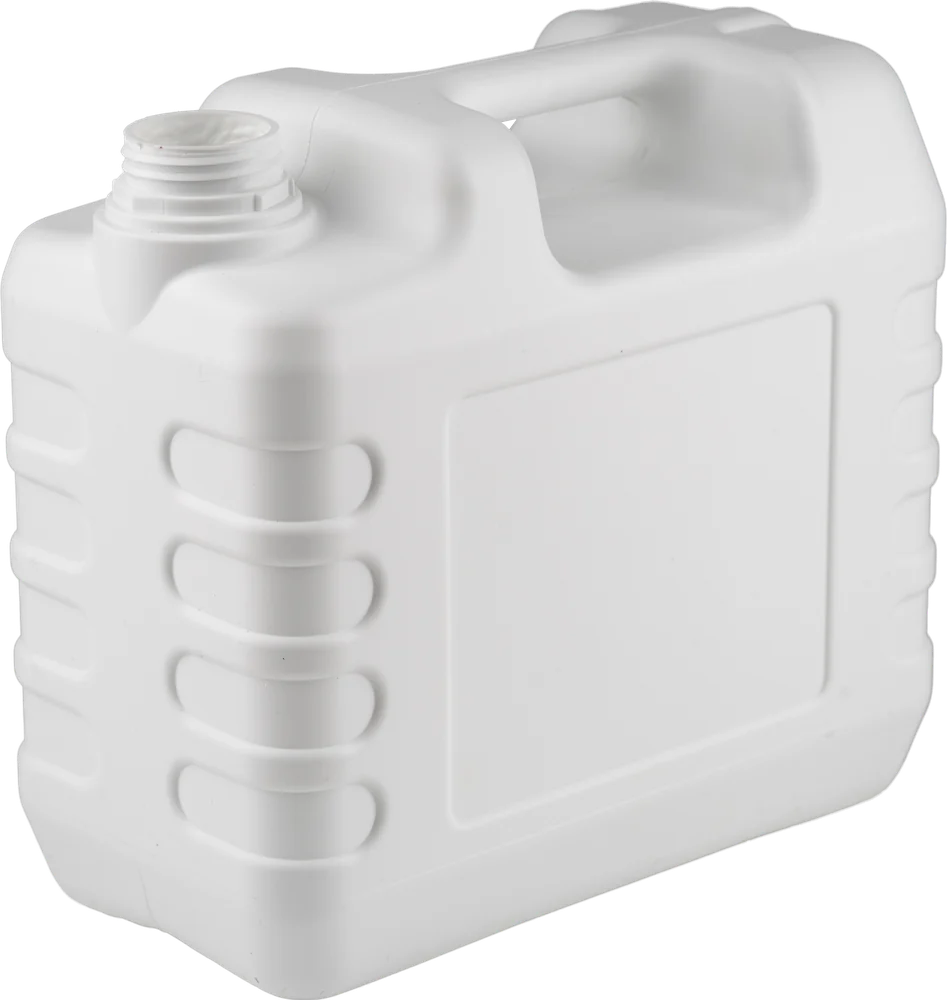

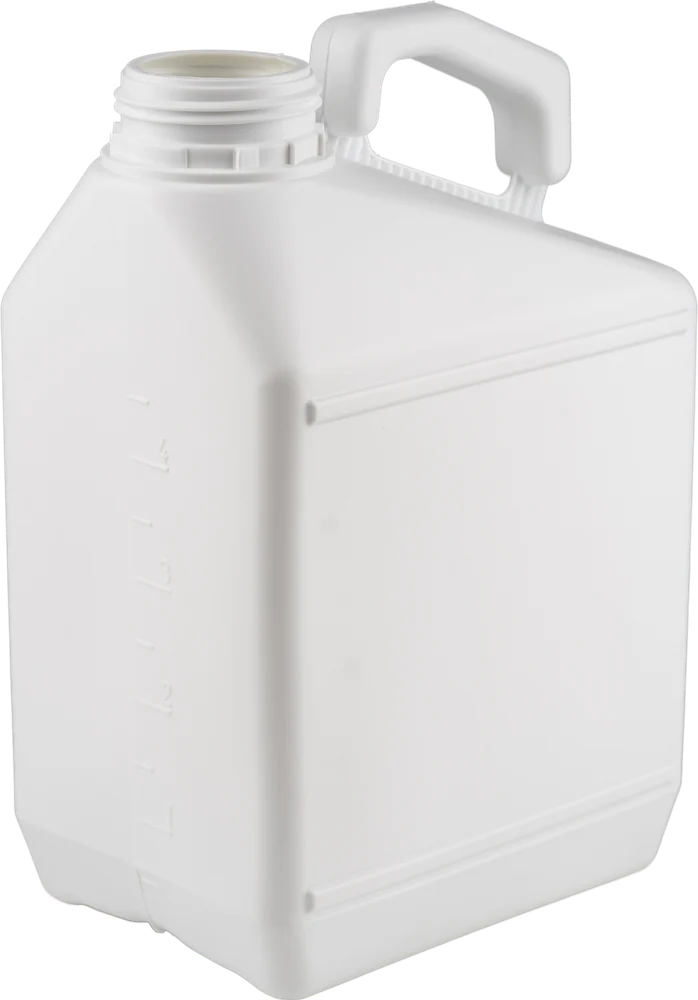

MaterialsJE3000: HDPEJE5000: HDPE / COEXJEA5000: HDPEJEB5000: HDPE
Rated capacityJE3000: 3 LJE5000: 5 LJEA5000: 5 LJEB5000: 5 L
Overflow capacityJE3000: 3.1 LJE5000: 5.64 LJEA5000: 5.39 LJEB5000: 5.65 L
HeightJE3000: 292 mmJE5000: 287 mmJEA5000: 295 mmJEB5000: 225 mm
LengthJE3000: 187 mmJE5000: 191 mmJEA5000: 250 mmJEB5000: 184 mm
WidthJE3000: 80 mmJE5000: 139 mmJEA5000: 128 mmJEB5000: 130 mm
Closure sizeJE3000: 50 mmJE5000: 64 mmJEA5000: 40 mmJEB5000: 40 mm
WeightJE3000: 125 gJE5000: 280 g / 280 gJEA5000: 210 gJEB5000: 240 g
Per bag (pcs)JE3000: 30JE5000: 12JEA5000: –JEB5000: 10
Per pallet (pcs)JE3000: 750JE5000: 468JEA5000: 594JEB5000: 200
Large Jerrycans

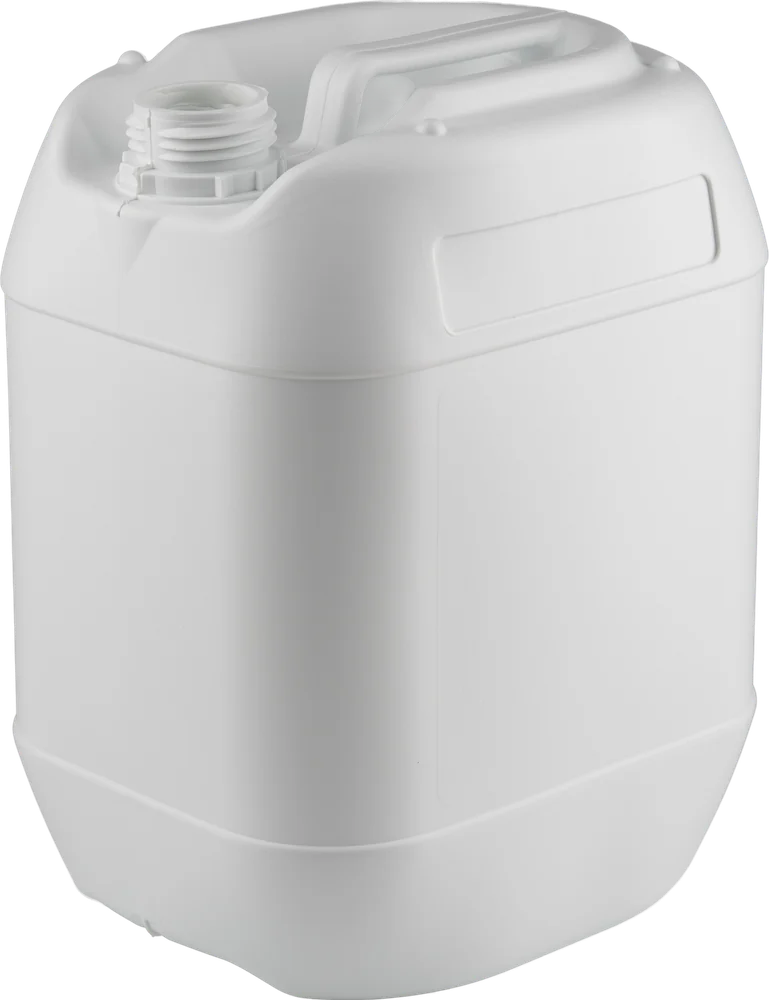

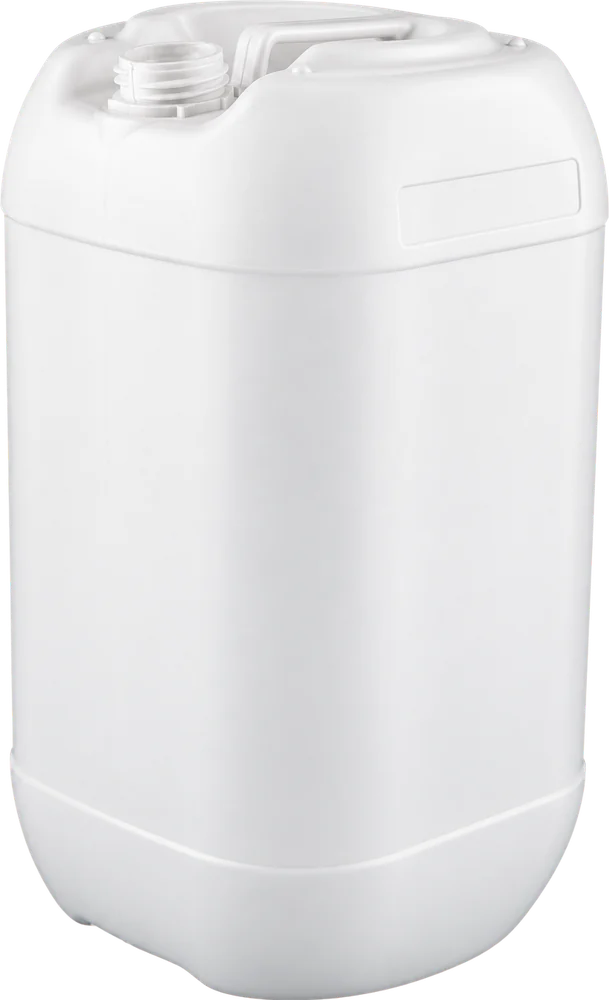

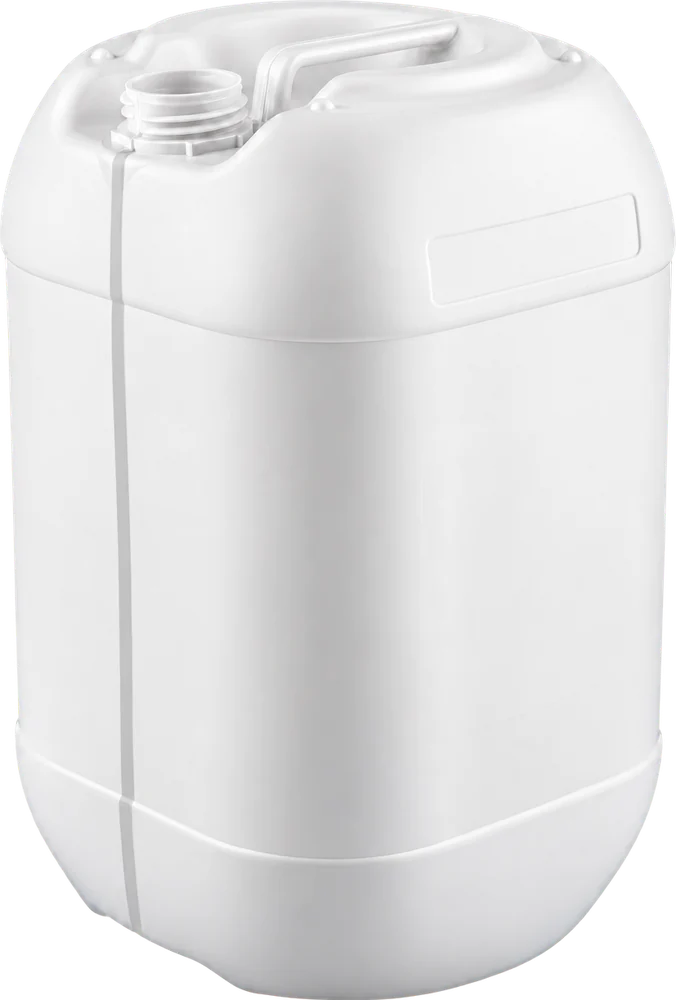

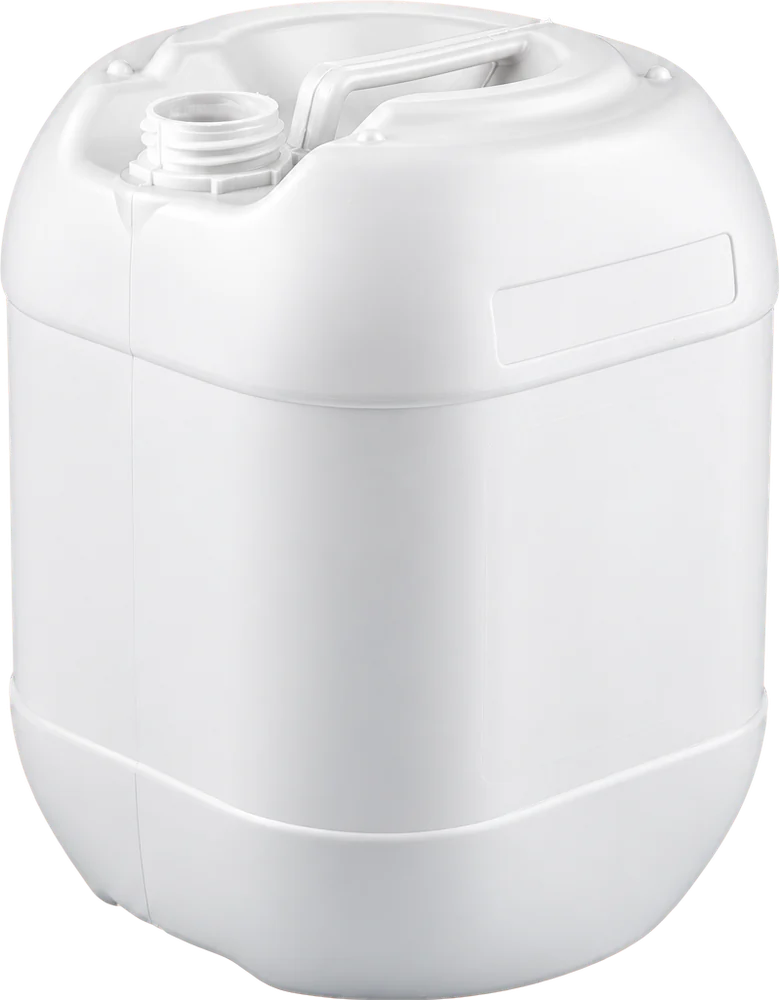

MaterialsJE10: HDPEJE20: HDPEJE25: HDPEJE30: HDPE
Rated capacityJE10: 10 LJE20: 20 LJE25: 25 LJE30: 30 L
Overflow capacityJE10: 10.74 LJE20: 22.3 LJE25: 27.75 LJE30: 32.4 L
HeightJE10: 308 mmJE20: 375 mmJE25: 450 mmJE30: 515 mm
LengthJE10: 240 mmJE20: 285 mmJE25: 285 mmJE30: 285 mm
WidthJE10: 195 mmJE20: 285 mmJE25: 285 mmJE30: 285 mm
Closure sizeJE10: 50 mmJE20: 60 mmJE25: 60 mmJE30: 60 mm
WeightJE10: 700 gJE20: 1200 gJE25: 1350 gJE30: 1500 g
Per bag (pcs)JE10: 12JE20: 6JE25: 4JE30: 4
Per pallet (pcs)JE10: 216JE20: 120JE25: 56JE30: 56
Other Designs

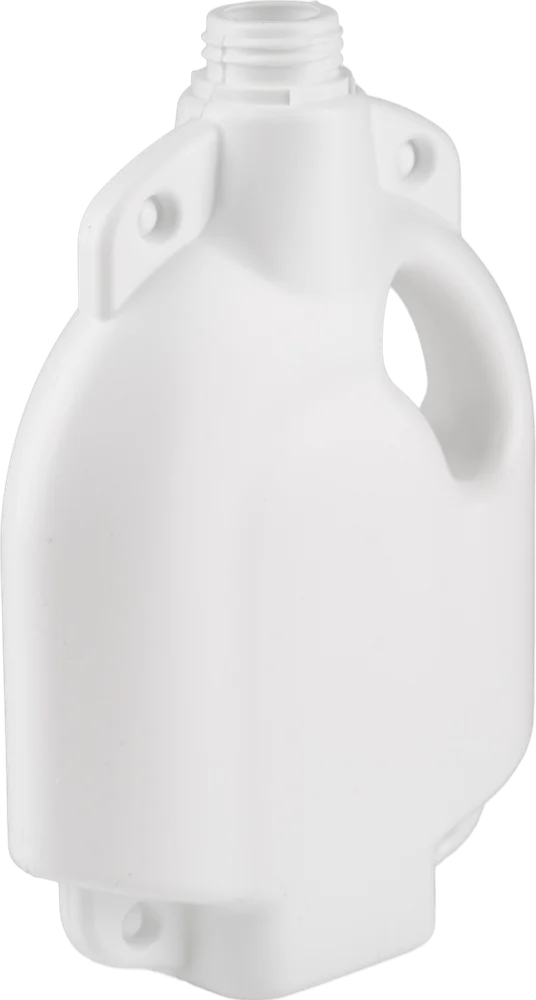

DetailsJE1024
MaterialsJE1024: HDPE
Rated capacityJE1024: 1 L
Overflow capacityJE1024: 1.14 L
HeightJE1024: 169 mm
LengthJE1024: 240 mm
WidthJE1024: 60 mm
Closure sizeJE1024: 34 mm
WeightJE1024: 95 g
Per bag (pcs)JE1024: 48
Per pallet (pcs)JE1024: 1,680
