HI-TOP
Square
Square-section bottles from 100 ml to 1 litre. The flat sides carry labels cleanly and pack more efficiently than round equivalents, which reduces shipping volume on high-turnover products.
Available Designs
Standard

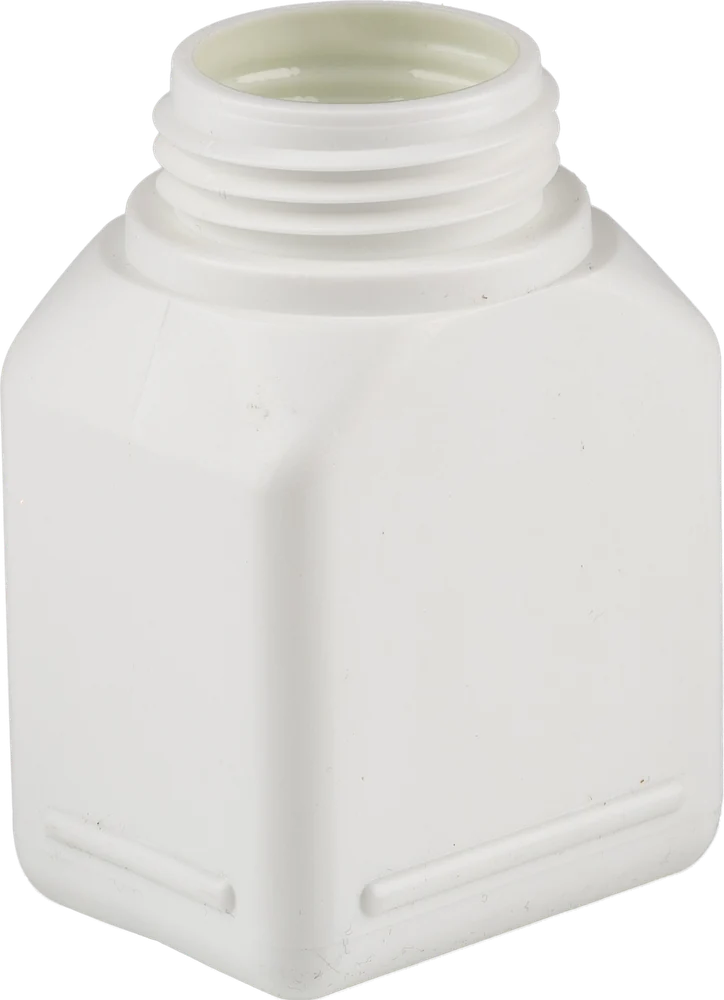

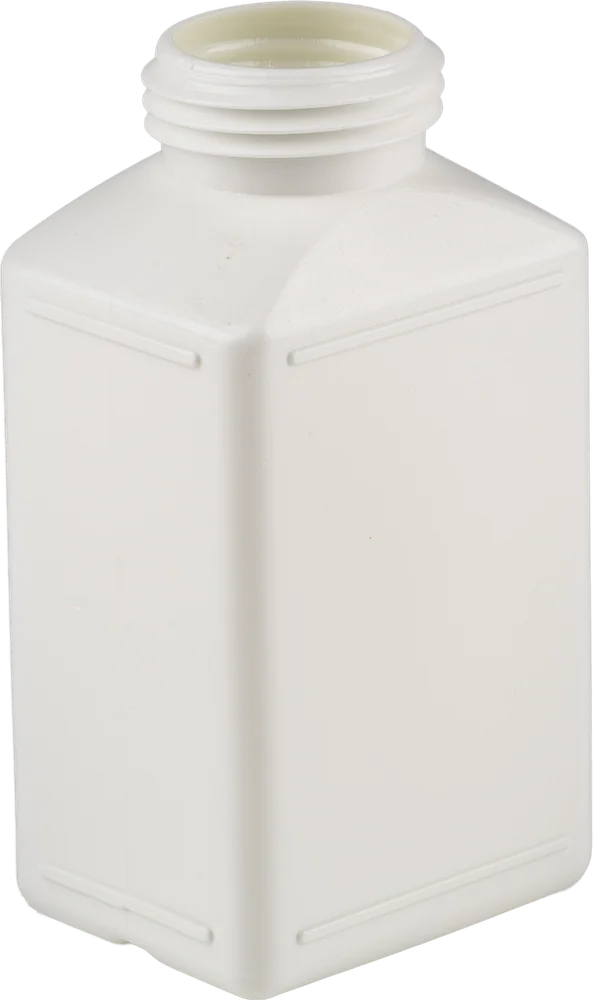

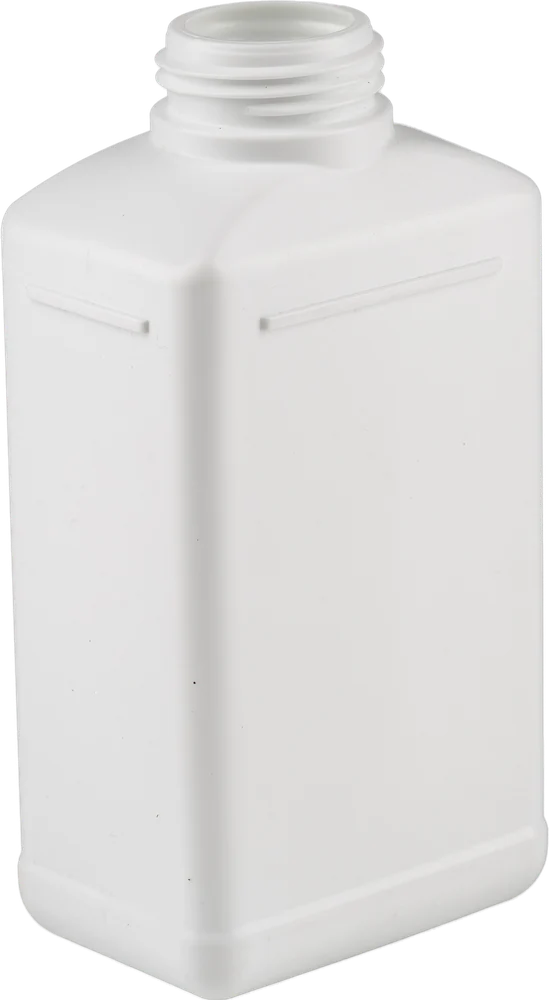

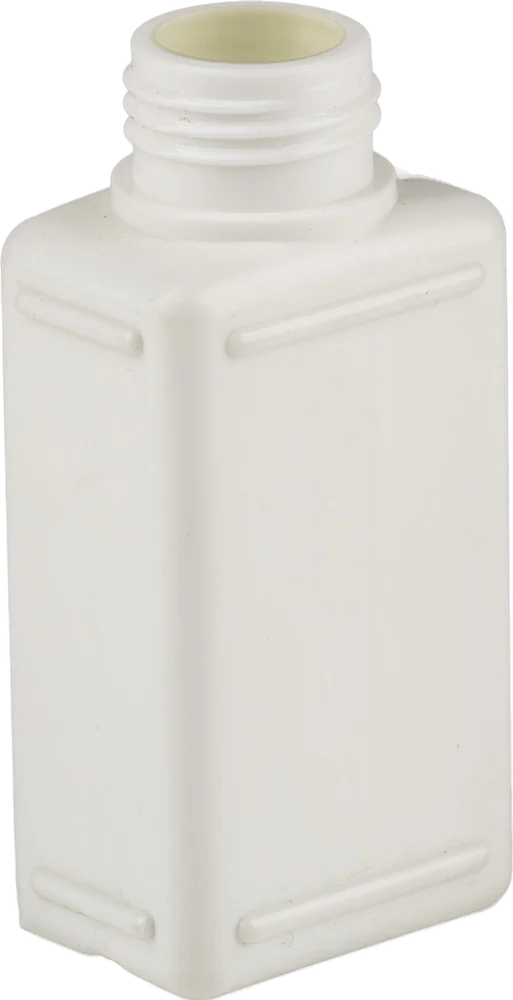

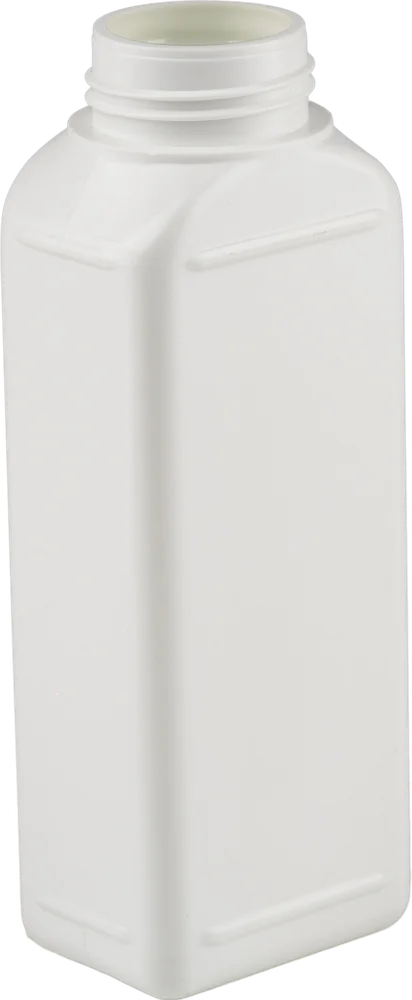

MaterialsS100: COEXS250: HDPE / COEXS500: HDPE / COEXSN500: HDPE / COEXS1000: HDPE / COEX
Rated capacityS100: 100 mlS250: 250 mlS500: 500 mlSN500: 500 mlS1000: 1 L
Overflow capacityS100: 120 mlS250: 315 mlS500: 540 mlSN500: 585 mlS1000: 1.16 L
HeightS100: 101 mmS250: 107 mmS500: 190 mmSN500: 150 mmS1000: 203 mm
LengthS100: 50 mmS250: 73 mmS500: 69 mmSN500: 79 mmS1000: 106 mm
WidthS100: 36 mmS250: 57 mmS500: 51 mmSN500: 63 mmS1000: 73 mm
Closure sizeS100: 28 mmS250: 50 mmS500: 46 mmSN500: 50 mmS1000: 50 mm
WeightS100: 20 gS250: 35 g / 40 gS500: 60 g / 60 gSN500: 60 g / 60 gS1000: 100 g / 110 g
Per bag (pcs)S100: 100S250: 50S500: 60SN500: 60S1000: 36
Per pallet (pcs)S100: 16,000S250: 6,000S500: 4,680SN500: 2,880S1000: 2,160

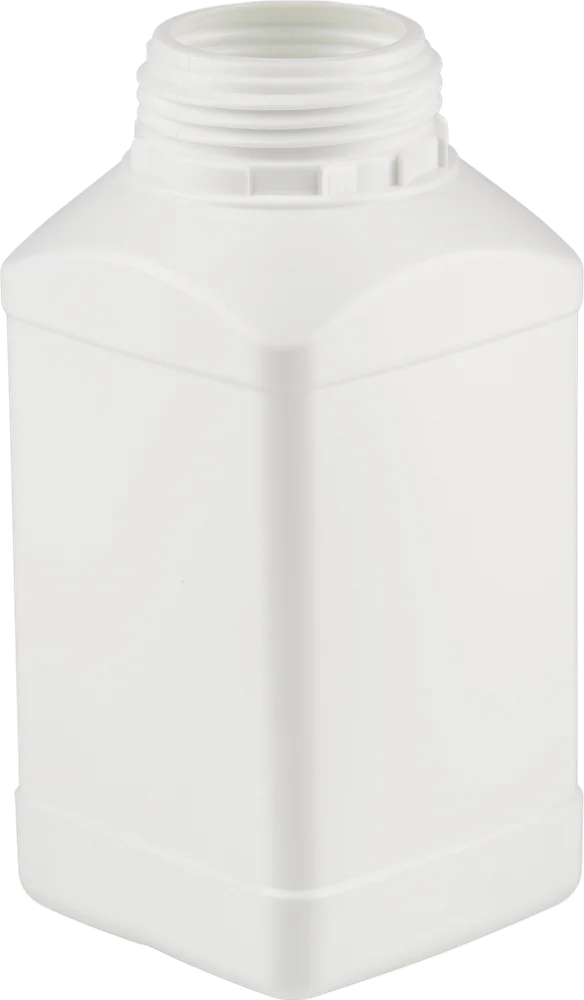

MaterialsS1046: HDPES1060: HDPE / COEX
Rated capacityS1046: 1 LS1060: 1 L
Overflow capacityS1046: 950 mlS1060: 1.31 L
HeightS1046: 192 mmS1060: 194 mm
LengthS1046: 93 mmS1060: 95 mm
WidthS1046: 69 mmS1060: 95 mm
Closure sizeS1046: 46 mmS1060: 64 mm
WeightS1046: 80 gS1060: 100 g / 110 g
Per bag (pcs)S1046: 49S1060: 36
Per pallet (pcs)S1046: 2,352S1060: 2,160
